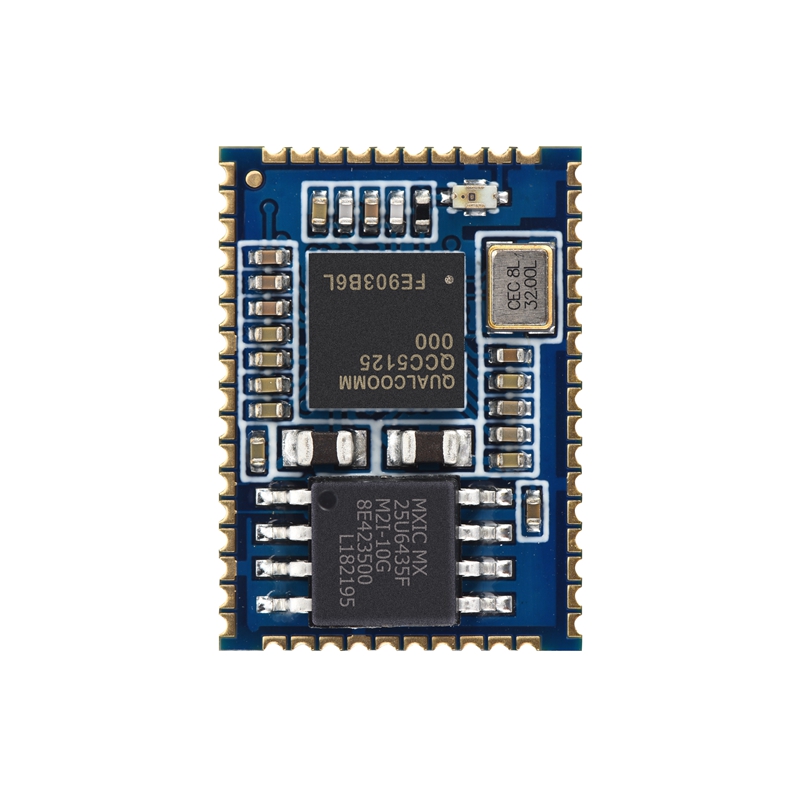

Introduction to BTM525 (QCC5125) Bluetooth module
- Item No.:59
- Category:Bluetooth Module
- Introduction to BTM525 (QCC5125) Bluetooth module
- Description
- Message board
Basic Parameter
| Bluetooth module model: | SJR-BTM525 |
| Chipset: | QCC5125 |
| Bluetooth version: | Bluetooth 5.1 dual mode |
| Frequency: | 2.402 - 2.480 GHz |
| Profiles: | A2DP, AVRCP, HFP, HSP, PBAP, SPP, GATT |
| Dimension: | 13mm x 18mm x 2.8mm |
| Transmit power: | +9dBm |
| Audio code: | apt-X, apt-X HD, apt-X Low Latency, aptx-AD, AAC, SBC, LDAC |
Features
●Qualified Bluetooth v5.1 specifications
●120 MHz Qualcomm KalimbaTM audio DSPs
●32 MHz Developer Processor for applications
●Firmware Processor for system
●Flexible QSPI flash programmable platform
●Advanced audio algorithms
●Digital and analog microphone interfaces
●apt-X, apt-X HD, apt-X Low Latency, aptx-AD, AAC, SBC, LDAC audio codecs support
Applications
●Automotive
●Bluetooth speaker
●Bluetooth sound bar
●Bluetooth headsets
●Home audio application
