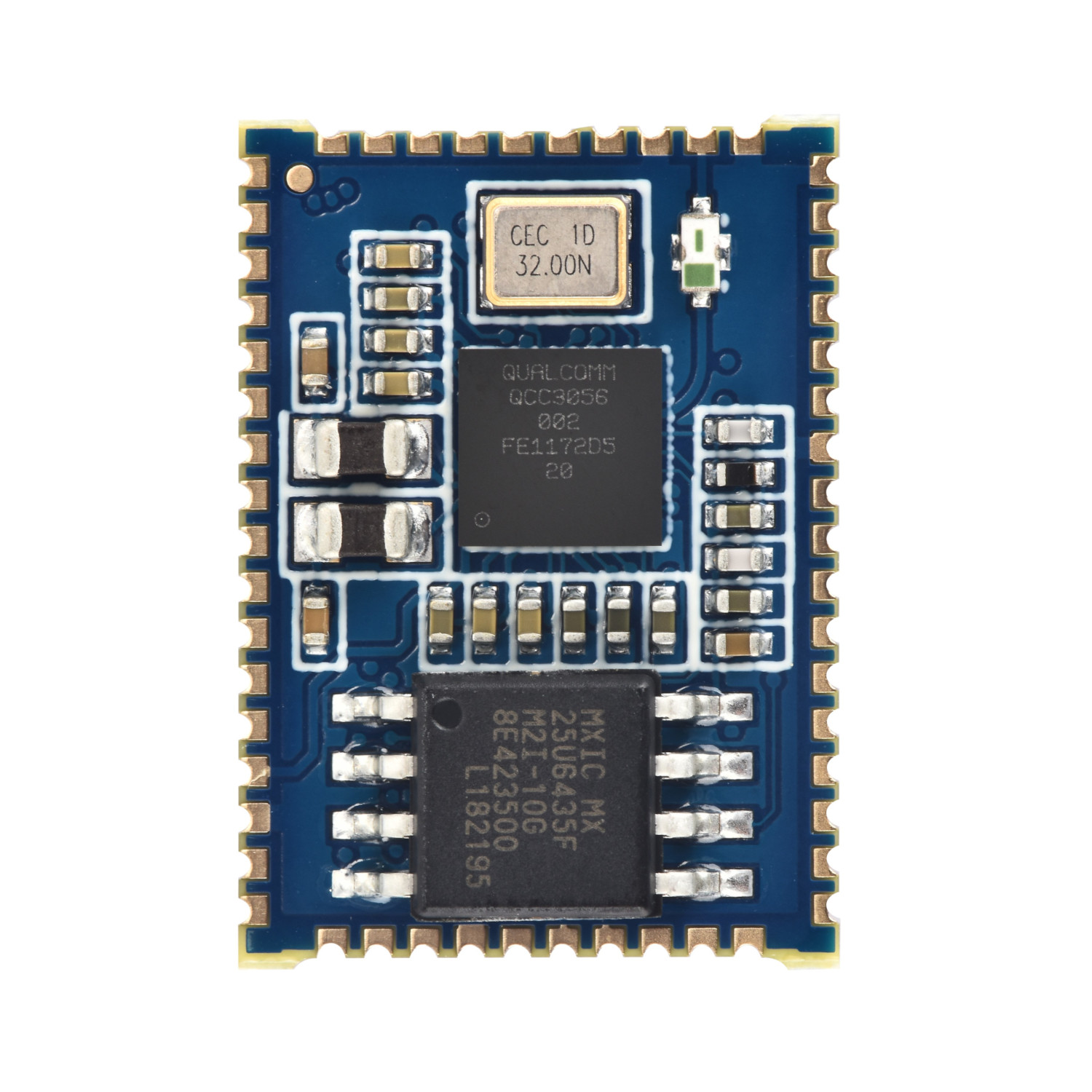

Introduction to BTM356 (QCC3056) Bluetooth module
- Item No.:103
- Category:Bluetooth Module
- Introduction to BTM356 (QCC3056) Bluetooth module
- Description
- Message board
Basic Parameter
| Bluetooth module model: | SJR-BTM356 |
| Chipset: | QCC3056 |
| Bluetooth version: | Bluetooth 5.3 dual mode |
| Frequency: | 2.402 - 2.480 GHz |
| Profiles: | A2DP, AVRCP, HFP, HSP, PBAP, SPP, GATT |
| Dimension: | 13mm x 18mm x 2.8mm |
| Transmit power: | +9dBm |
| Audio code: | apt-X, apt-X HD, aptx-AD, AAC, SBC |
Features
●Qualified Bluetooth v5.3 specifications
●120 MHz Qualcomm KalimbaTM audio DSPs
●80 MHz Developer Processor for applications
●Firmware Processor for system
●Flexible QSPI flash programmable platform
●Advanced audio algorithms
●Digital and analog microphone interfaces
●apt-X, apt-X HD, aptx-AD, AAC, SBC audio codecs support
Applications
●Bluetooth earbud
●Bluetooth USB Dongle
