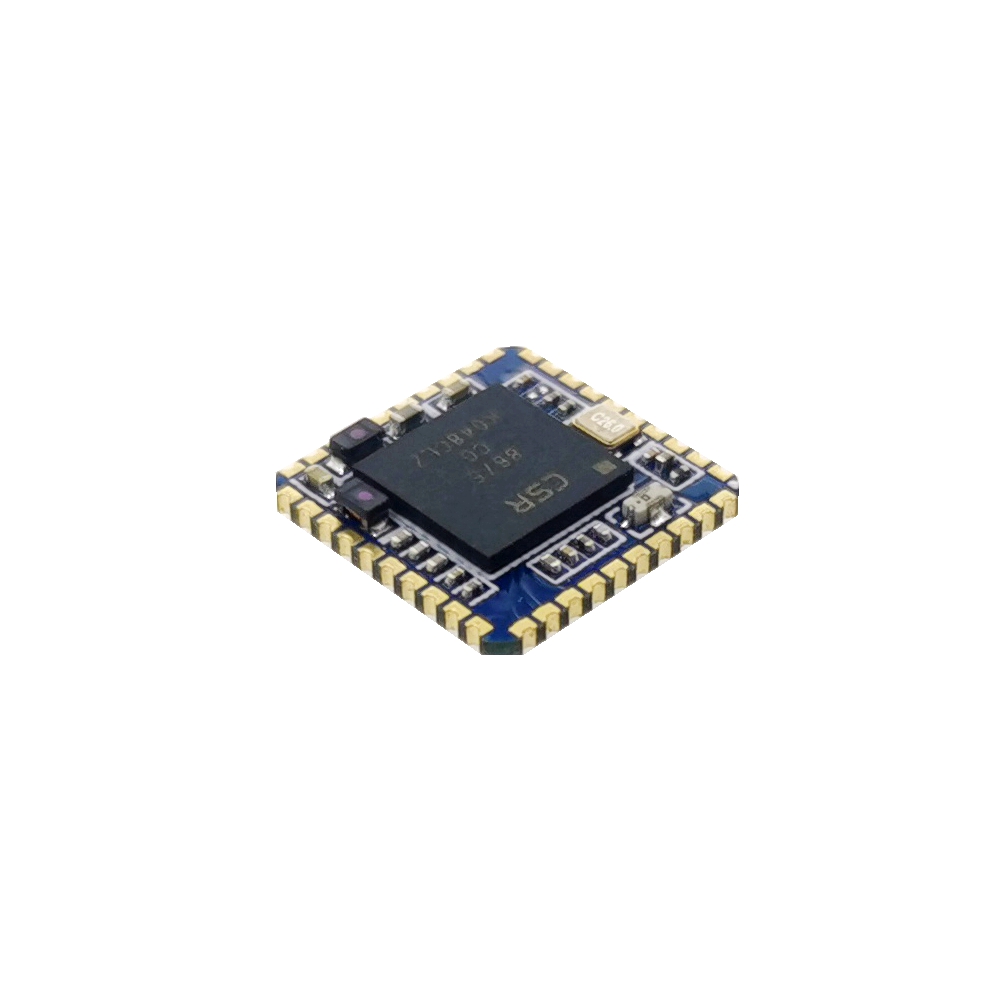

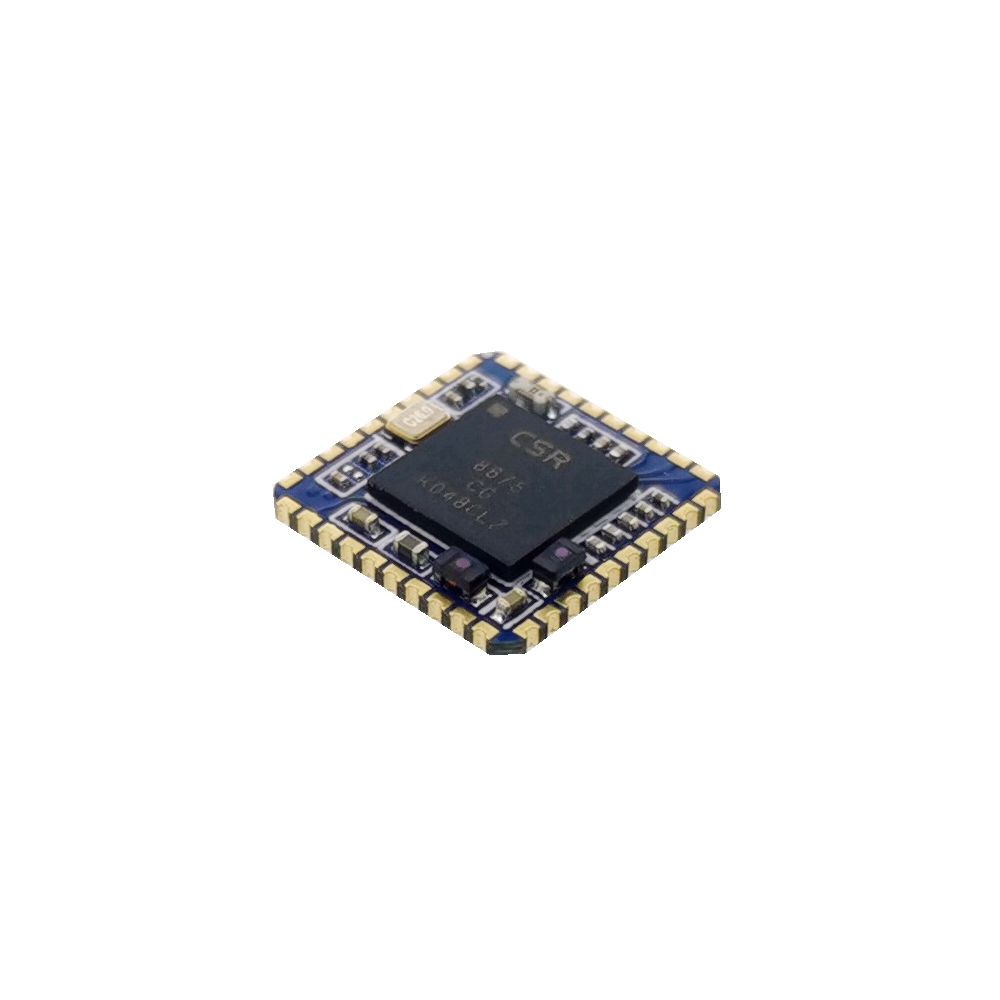

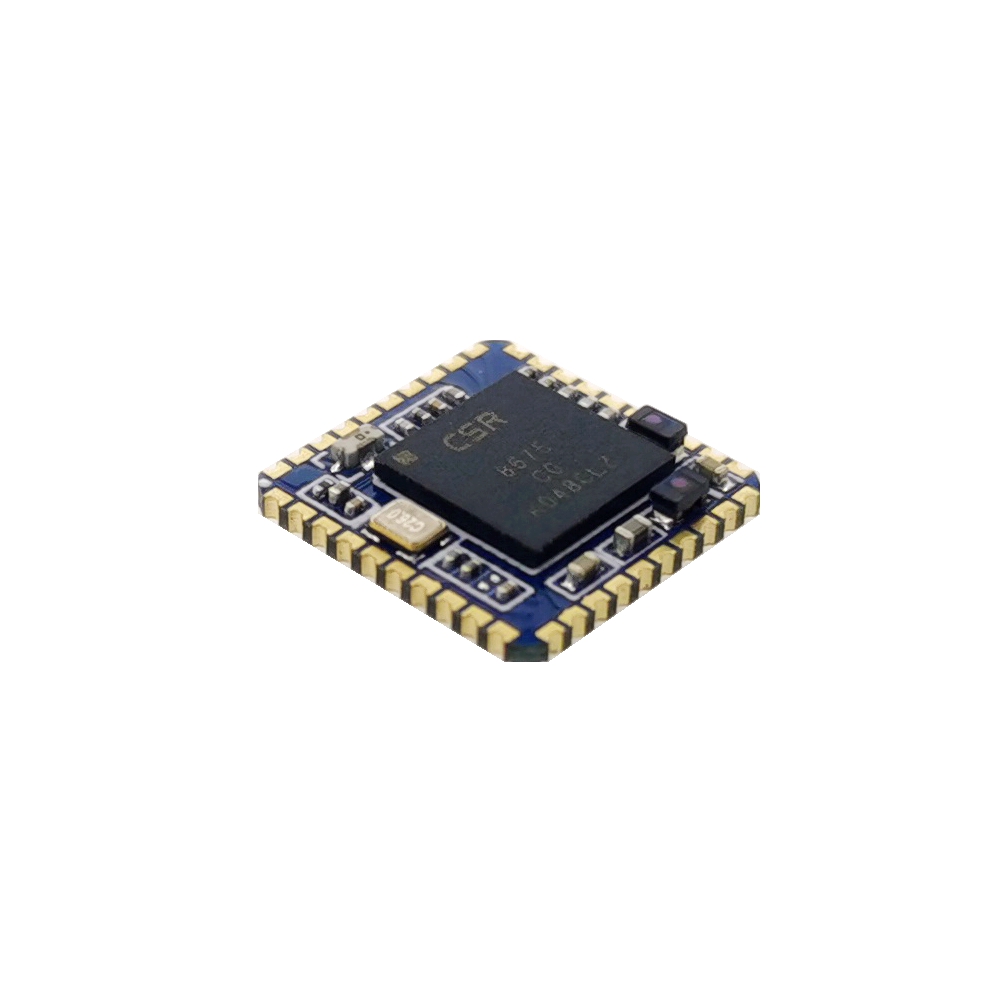

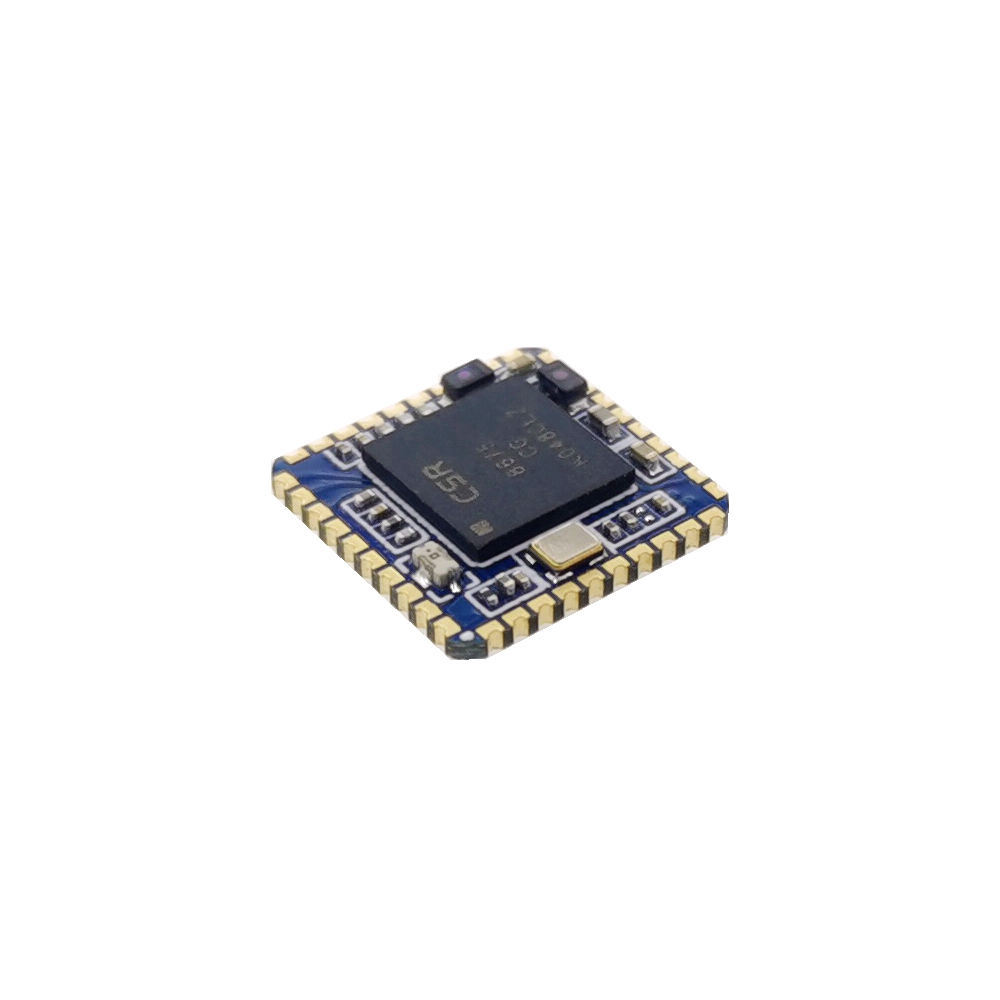

Introduction to BTM875-E (CSR8675) Bluetooth module

  • Item No.:93
  • Category:Bluetooth Module
  • Introduction to BTM875-E (CSR8675) Bluetooth module
  • Description
  • Message board

Basic Parameter

Bluetooth module model:SJR-BTM875-E
Chipset:CSR8675
Bluetooth version:Bluetooth 5.0 dual mode
Frequency:2.402 - 2.480 GHz
Profiles:A2DP, AVRCP, HFP, HSP, PBAP, SPP, GATT
Dimension:11.5mm x 11.5mm x 2.0mm
Transmit power:+9dBm
Audio code:apt-X, apt-X HD, apt-X Low Latency, AAC, SBC, LDAC

Features

●Qualified Bluetooth v5.0 specifications

●Firmware Processor for system

●Advanced audio algorithms

●Digital and analog microphone interfaces

●apt-X, apt-X HD, apt-X Low Latency, AAC, SBC, LDAC audio codecs support

Applications

●Automotive

●Bluetooth speaker

●Bluetooth sound bar

●Bluetooth headsets

●Home audio application
